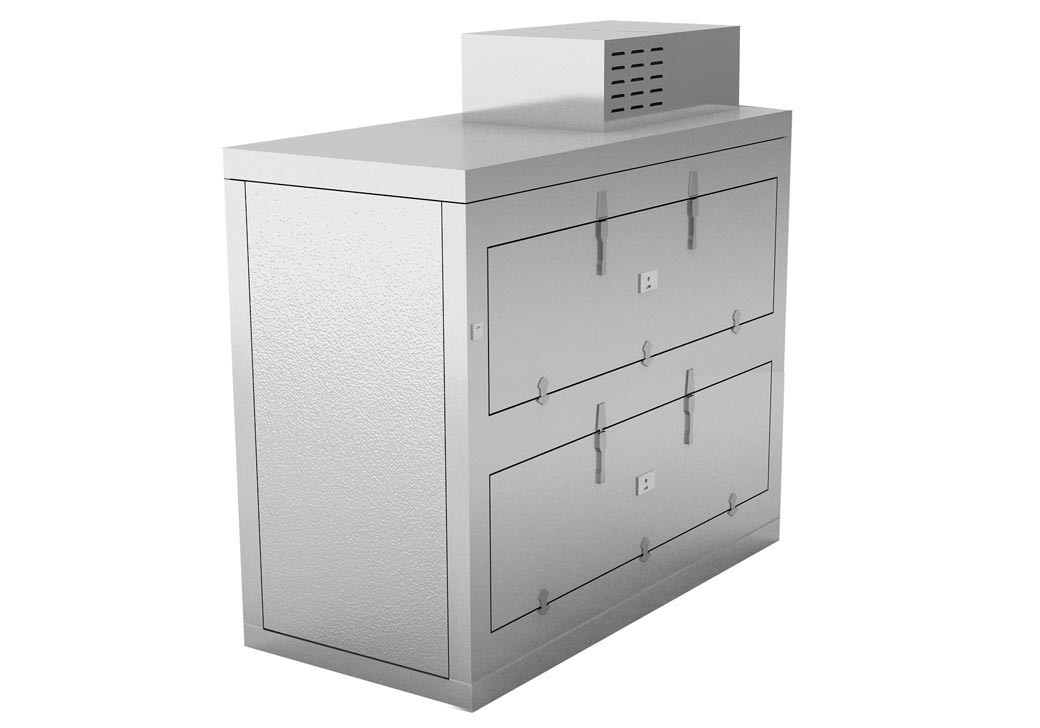

Mortuary Fridge (2 BODY) - Side Opening (Telescoping) - KC200

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Mortuary Fridge (2 BODY) - Side Opening (Telescoping) - KC200

Availability: In stock

Quick Overview

Side opening telescoping mortuary fridge made to the highest quality.


Side opening telescoping mortuary fridge are designed with individual doors. A telescoping mechanism fully supports the body tray. When the door is open, the body tray and cadaver are displayed in full side view.

Price on Application


• Dimensions: 8'(243cm) L x 3'6"(106cm) W x 6'7"(200cm) H
• (1) CPB050DC-A Refrigeration System • Approximate Total Shipping Weight (lbs) 1,421 Finishes:
• 26 Gauge Corrosion Resistant Stucco Embossed Coated Steel- Interior wall, Exterior wall, Interior ceiling
• 20 Gauge Stainless Steel-Exposed wall
• 26 Gauge smooth galvanized, ceiling topside, floor bottom side
• 14 Gauge Galvanized- Interior floor
• (2) Telescopes (KT200) and two body trays (JC100)Weight capacity: 375 Lbs per tray
• (1) Vapor proof Light Fixture (Shipped Loose For Field Installation).
• (48) Sq. Ft. Of 3/4"CDX Plywood wall Backing-(full height on the back wall and all the way to the bottom of the wall with plywood notched for lock holes)
• (1) Small ceiling mount capsule-pak Refrigeration system opening (For Use With Non-Standard Capsule-Pak Locations)
• (1) 2'' Solar Powered Digital Thermometer Installed in wall
• (1) Set of 2 Card Holders
• (1) Set of (2) 83"(210cm) x 21"(53cm) Side Opening Door - Stainless Int.
• Each solid service door includes magnetic gasket and perimeter frame heater wire
• Raise bottom door to be at 12-3/8''(30cm)
• (1) Set of (2) Door Controlled Light Switch
• (1) Wood Blocking at the Bottom of the Door Frames
• (1) Set of (4) Hydraulic Dampers Installed (101717)
• (1) Set of (4) Wire Cables Installed
• (1) Set of (2) Aluminum Frame on the Interior of the Door Frame
• (1) Tapping Plate Material in Door Sides
• (1) Set of Brackets for Hardware
• (1) CPB050DC-A 4 Degrees Celsius Operation, Capsule-Pak Refrigeration System, Indoor Ceiling Mount High Temperature, ''Off Cycle''Timer,R-404A Refrigerant,115-1-60 Electrical Which Meets CEC Requirements.
• System Overall Size Is 29"(73cm) Wide, 44.5"(111cm) Long and 14.5"(35cm) High.
• 13.3 Total System AMPS,16.1 Minimum Circuit AMPS,20 Maximum Fuse Size.4.81 EER Rating (system capacity 3460 BTU's/hour at 26.7 Degrees Celsius ambient temperature)
• Calculated load for Cooler (4.0 Degrees Celsius) is 1391BTU's/hour calculated from 24 Degrees Celsius ambient temperature, 20 minutes of open door time per 24 hours for each of (2) 83"(210cm) x 21"(53cm) side opening doors opening into 24 Degrees Celsius ambient (normal usage). no vent air no people working in the room, no additional electrical load, and 175 pounds of cadavers entering at 24 Degrees Celsius to be cooled in 24 hours.

Additional Information

Manufacturer Unbranded
