Details

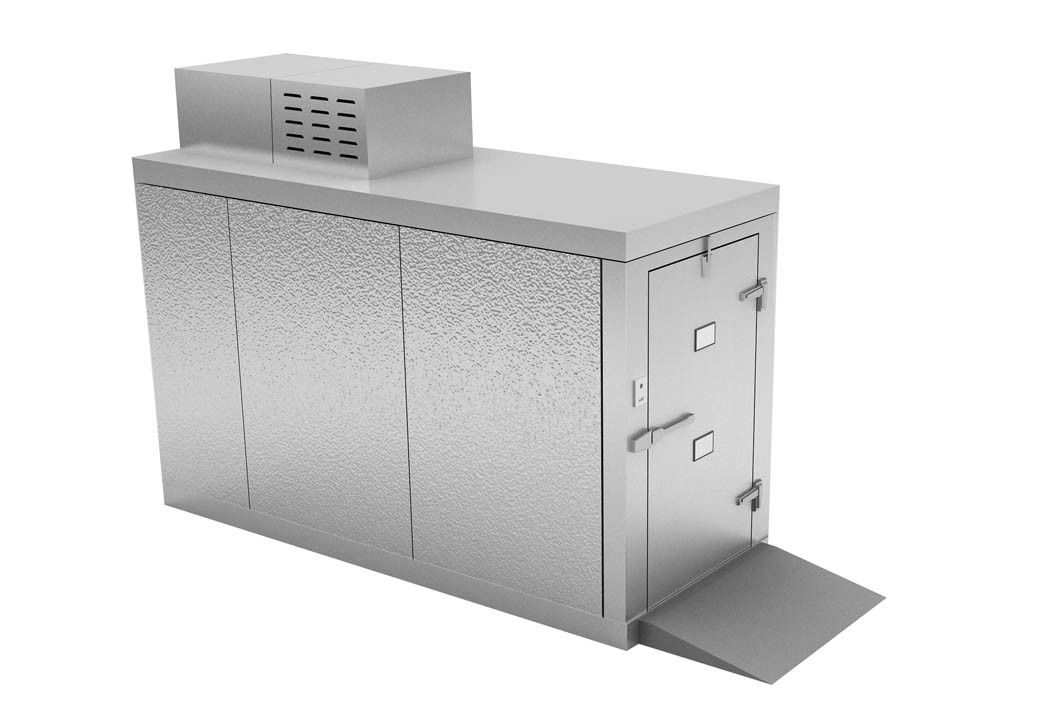

Roll-in mortuary fridges are designed to be used with a one tier or two tier body carrier. Door opens to a compartment that easily accommodates a two tier body carrier that is simply rolled in or out. The KB100 will accommodate two (2) 23" body trays. The KB100 is compatible with the JB100 carrier. Ramp included.
Price on Application
Specifications• Dimensions: 8'(243cm) L x 3'6"(106cm) W x 5'4"(162cm) H • (1) CPB050DC-A Refrigeration System • Approximate Total Shipping Weight (lbs) 1,337 Finishes: • 26 Gauge Corrosion Resistant Stucco Embossed Coated Steel- Interior wall, Exterior wall, Interior ceiling • 20 Gauge Stainless Steel-Exposed wall • 26 Gauge Smooth Galvanized-Ceiling topside, Floor bottom side • 14 Gauge Galvanized- Interior floor • (1) Small Ceiling Mount Capsule-Pak Refrigeration System Opening(For Use With Non-Standard Capsule-Pak Locations) • Sq. Ft. Of 3/4"CDX Plywood Sub floor • (1) Set of 2 Card Holders • (1) 27-1/2"(68cm) x 51"(129cm) Walk In Door - Stainless Int. • Includes door closer, cam lift hinges, handle with inside release,magnetic gasket, heater wire, digital thermometer, double sweep gasket, and vapour proof light with switch and pilot light. • (1) Special 27-1/2"(68cm) Exterior Ramp with Non Skid Strips Applied (25-1/2"(63cm) Deep) • (1) CPB050DC-A 4 Degrees Celsius Operation, Capsule-Pak Refrigeration System, Indoor Ceiling Mount High Temperature, ''Off Cycle''Timer, R-404A Refrigerant,115-1-60 Electrical Which Meets CEC Requirements. System • Overall Size Is 29"(73cm) Wide, 44.5"(111cm) Long and 14.5"(35cm) High. 13.3 Total System AMPS, 16.1 • Minimum Circuit AMPS,20 Maximum Fuse Size.4.81EER Rating (system capacity 3460 BTU's/hour at 26.7 Degrees Celsius ambient temperature) • Calculated load for Cooler (4.0 Degrees Celsius) is 1377BTU's/hour calculated from 24 Degrees Celsius ambient temperature, 29 minutes of open door time per 24 hours for (1) 27-1/2"(68cm) x 51"(129cm) Walk in doors opening into 24 Degrees Celsius ambient (normal usage), no vent air, no people working in the room, no additional electrical load, and 175 pounds of cadavers entering at 24 Degrees Celsius to be cooled in 24 hours.
Additional Information
| Manufacturer | Unbranded |
|---|
